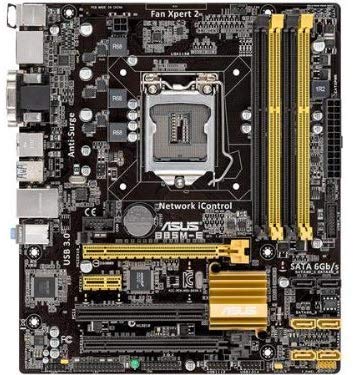

ASUS
INTEL LGA 1150
| Name | Description |
|---|---|
| CPU | Intel® Socket 1150 for the New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® |
| Chipset | Intel® B85 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory Dual Channel Memory Architecture |
| On-board graphics | Integrated Graphics Processor Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 1600 @ 60 Hz Maximum shared memory of 1024 MB Supports up to 3 displays simultaneously |
| Multi-Graphics Technology | Supports AMD Quad-GPU CrossFireX™ Technology |
| Audio | Realtek® ALC887-VD 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function |
| USB | Intel® B85 chipset : 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board) Intel® B85 chipset : 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board) |
| Internal I/O Connectors | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) |
| Back Panel Connectors | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 3 x Audio jack(s) |
| BIOS | 128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
| Form factor | mATX Form Factor 9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm ) |
