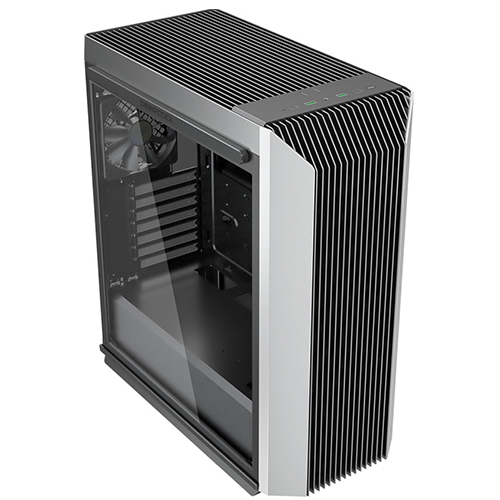

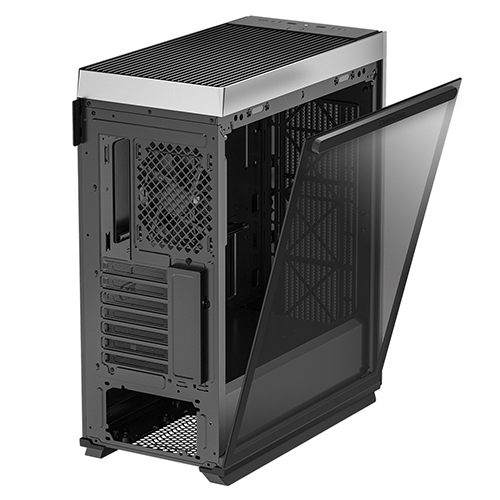

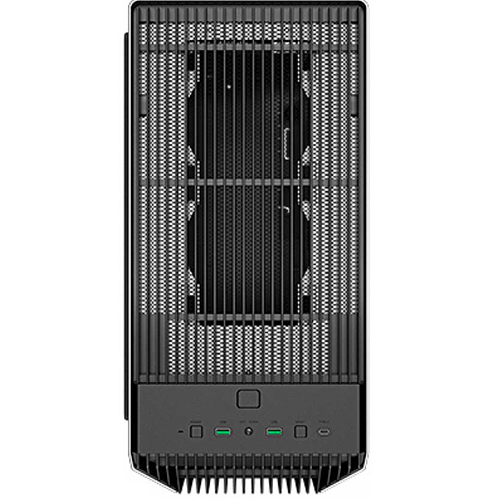

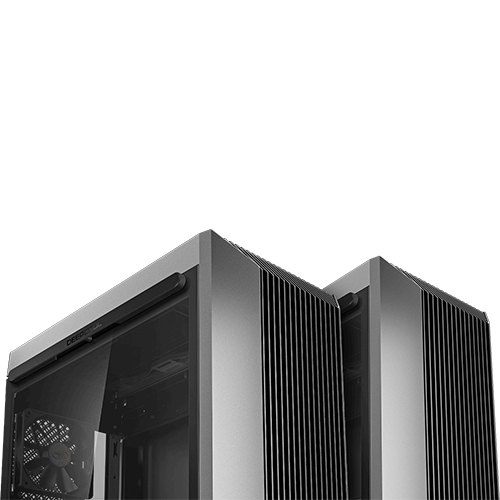

Deep Cool
Case
| Name | Description |
|---|---|
| Motherboard | Mini-ITX / Micro-ATX / ATX |
| Form factor | ATX Case |
| Material | ABS+SPCC+Tempered Glass |
| Dimensions | 473X226X519mm |
| Weight | 8.4Kg |
| Drive Bays | 2x 3.5"; 2x 2.5" |

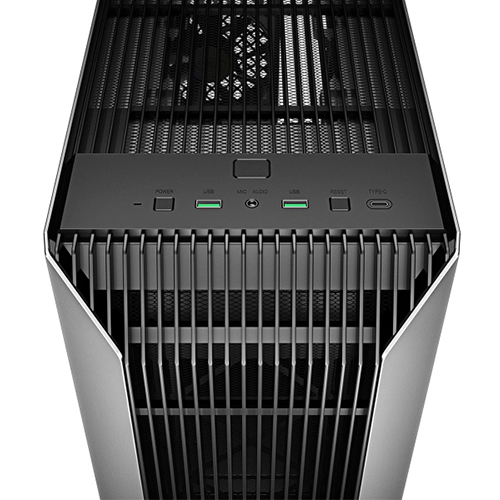

| Internal I/O Connectors | Audio×1, USB3.0 Type-A×2, USB3.1 Type-C×1 |
| Expansion Slots | 7 Slots |
| Power Supply | ATX PS2 (maximum length: 160mm) |
| Maximum CPU Cooler Height | 165mm |
| Videocard | 330mm |
| Places for coolers | Pre-installed: Rear: 1×120mm DC fan;Optional: Front: 120mm×3/140mm×2,Top: 120mm×2 |
| CBO (watercooling) | Front: 120/140/240/280/360; Rear: 120;TOP: 120/240 |
| P/N | R-CL500-BKNMA1N-G-1 |
